CyberBrick Ultimate Hardware Kit

The CyberBrick Ultimate Hardware Kit packs a full dose of tech, creativity, and maker fun into one box! Its modular design means all components can be flexibly combined and expanded. Whether it¡¯s R/C vehicles, clever robotic arms or interactive play ideas ¨C this kit takes your projects to the next level!

Tip: You¡¯ll find plenty of inspiration and guidance in the extensive project library on MakerWorld. CyberBrick makes it easy to turn creative ideas into real, hands-on technology ¨C with no complicated setup required.

With the Ultimate Hardware Kit, you can assemble 2 Remote and 2 Vehicle Modules.

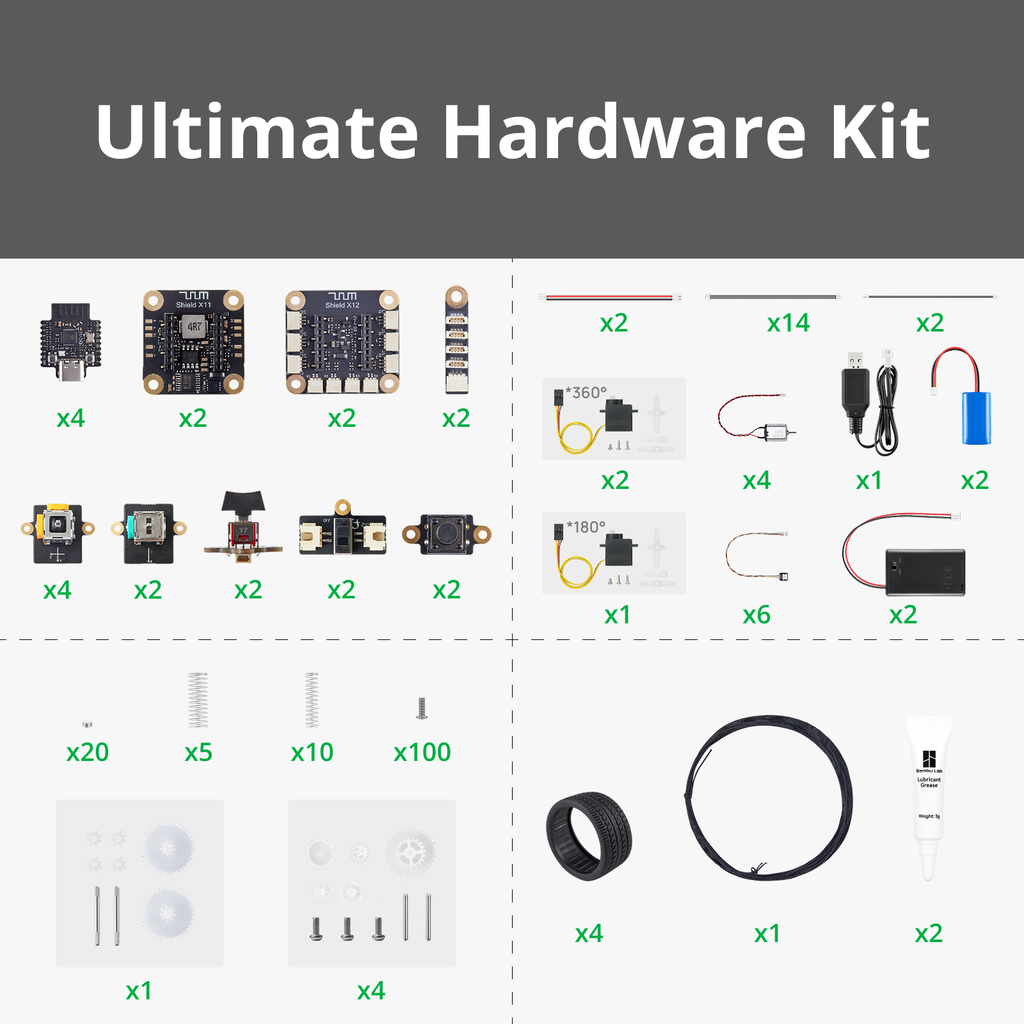

Included in the delivery:

• 4 x Multi-Function Core Board
• 2 x Remote Control Receiver Shield
• 2 x Remote Control Transmitter Shield
• 2 x WS2812 LED hub with 3-pin SH1.0 connector
• 2 x Power Switch Modules with 2Pin XH2.54 connector
• 2 x Momentary Button Modules with 2pin SH1.0 connector
• 2 x Dingle-axis joystick modules with 3-pin SH1.0 connector
• 2 x 3-position rocker switch modules with 3-pin SH1.0 connector
• 4 x Dual-axis joystick module with 3-pin SH1.0 connector
• 2 x 3x1.5V AAA Battery Case with XH2.54 connector
• 2 x 14500 7.4 V 800 mAh Li-Ion battery
• 1 x 7.4V Lithium Battery Charger with XH2.54 connector
• 2 x 100 mm cables with 2-pin XH2.54 connectors
• 14 x 100 mm cable with 3pin SH1.0 connector
• 2 x 100 mm cable with 2pin SH1.0 connectors
• 6 x WS2812 RGB LED with IDC0.8 4PIN
• 1 x Plastic Differential Gear Kit
• 4 x ?33.7x13.85 mm rubber tyres
• 4 x ?30 Micro DC Motor with SH1.0
• 4 x 1:4.8 Single-axis Plastic Reduction Gear Kit
• 1 x 180¡ã 9 g servo motor with clutch protection
• 20 x 4x2 mm round magnet
• 10 x 0.5x5x20 mm compression spring
• 5 x 0.6x8x20 mm compression spring
• 1 x 0.6 mm black nylon cord (5 m)
• 2 x 360¡ã 9 g servo motor with clutch protection
• 100 x M2.5x6 BHCS machine screws
• 2 x Grease

Note: The set only contains the electronic modules. 3D-printed parts and tools are not included!

Technical specifications:
