DDX V3 extruder for Creality

Bondtech DDX V3 For Creality 3D printers

The Bondtech DDX V3 Direct Drive Extruder for Creality 3D Printers is an upgrade kit that replaces the original Bowden with a direct drive setup. It is a high-performance, dual-drive extruder based on the BMG Bondtech Mini Geared.

Compatible with multiple hotends

This model was created to be compatible with the original hotend of each Creality model. Users can also upgrade the hotend to Copperhead or Mosquito.

DDX adapter kit required

The DDX V3 is compatible with most Creality Ender and CR-10 series 3D printers. The DDX V3 requires a kit of adapters for each model or set of models.

Special sets of adapters and cables are required to upgrade the hotend.

Copperhead or Mosquito Hotend

To upgrade the hotend to Copperhead or Mosquito on a Creality 3D printer with DDX V3, the thermistor must be replaced. A firmware update is required when replacing the thermistor. It should be noted that the hotend cannot be upgraded if the printer does not have a boot loader:

Example: Ender-3 / Ender 3 Pro / Ender 5 / Ender 5 Pro / CR-10 / ...

Contents of delivery:

• 1x DDX V3 extruder
• 1x Nema17 pancake stepper motor
• 1x knurled screw
• 1x 70cm stepper motor extension cable
• 1x 70cm PTFE tube
• 1x 7cm Capricorn tube
• 3x cable ties
• 3x M3x10mm screw
• 2x M3x20mm screw
• 1x M3x10mm button screw

Use of a level sensor with DDX V3

The DDX V3 was designed so that the levelling sensor can be attached to the X-Carriage. For models that do not have space to attach a bed probe such as the BLTouch to the X-Carriage, a bracket can be printed and attached to the right side of the DDX.

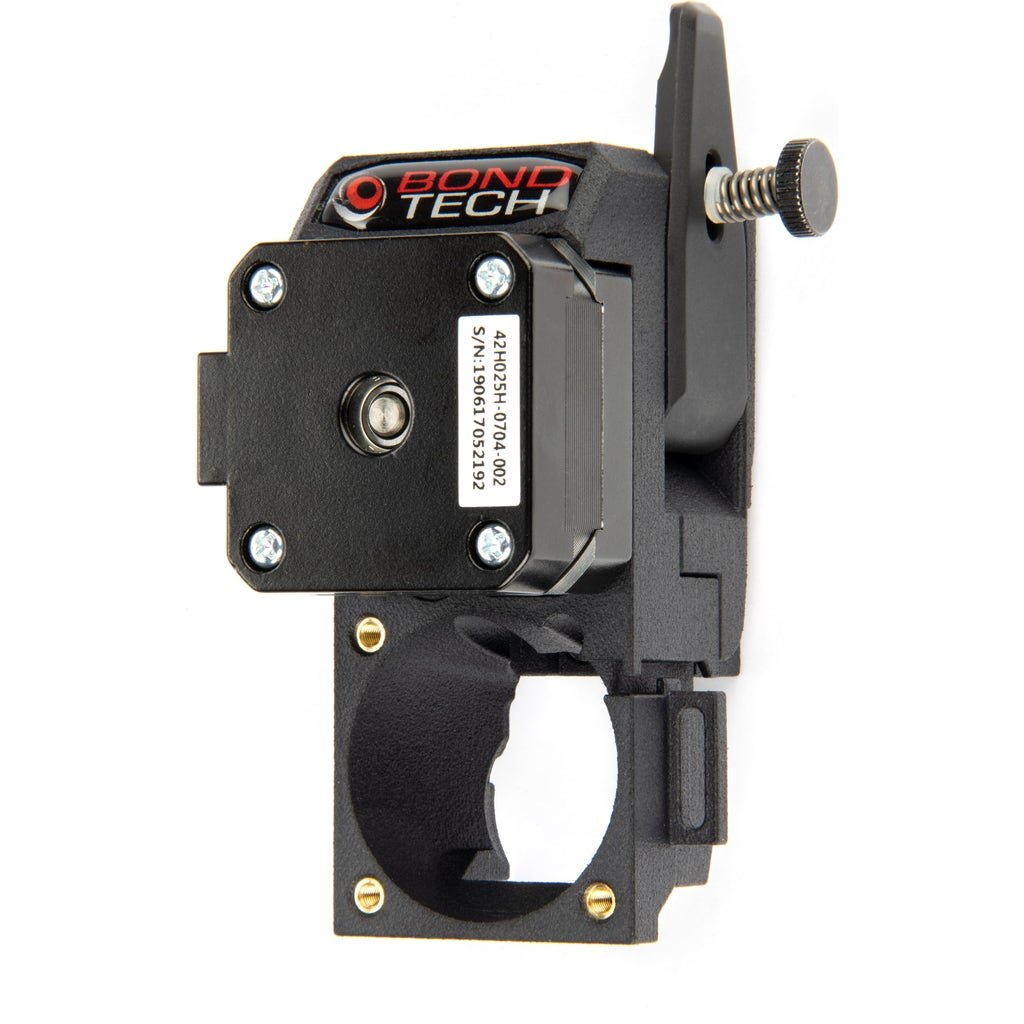

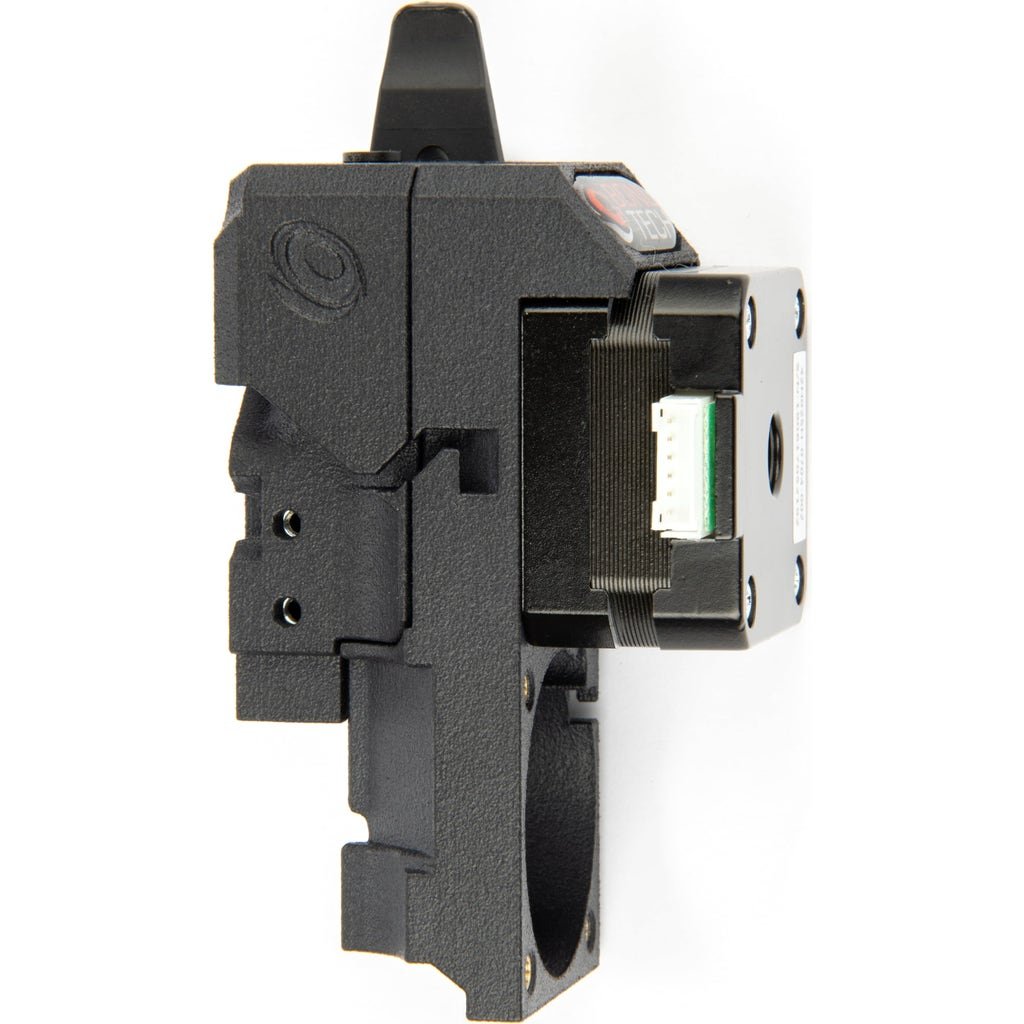

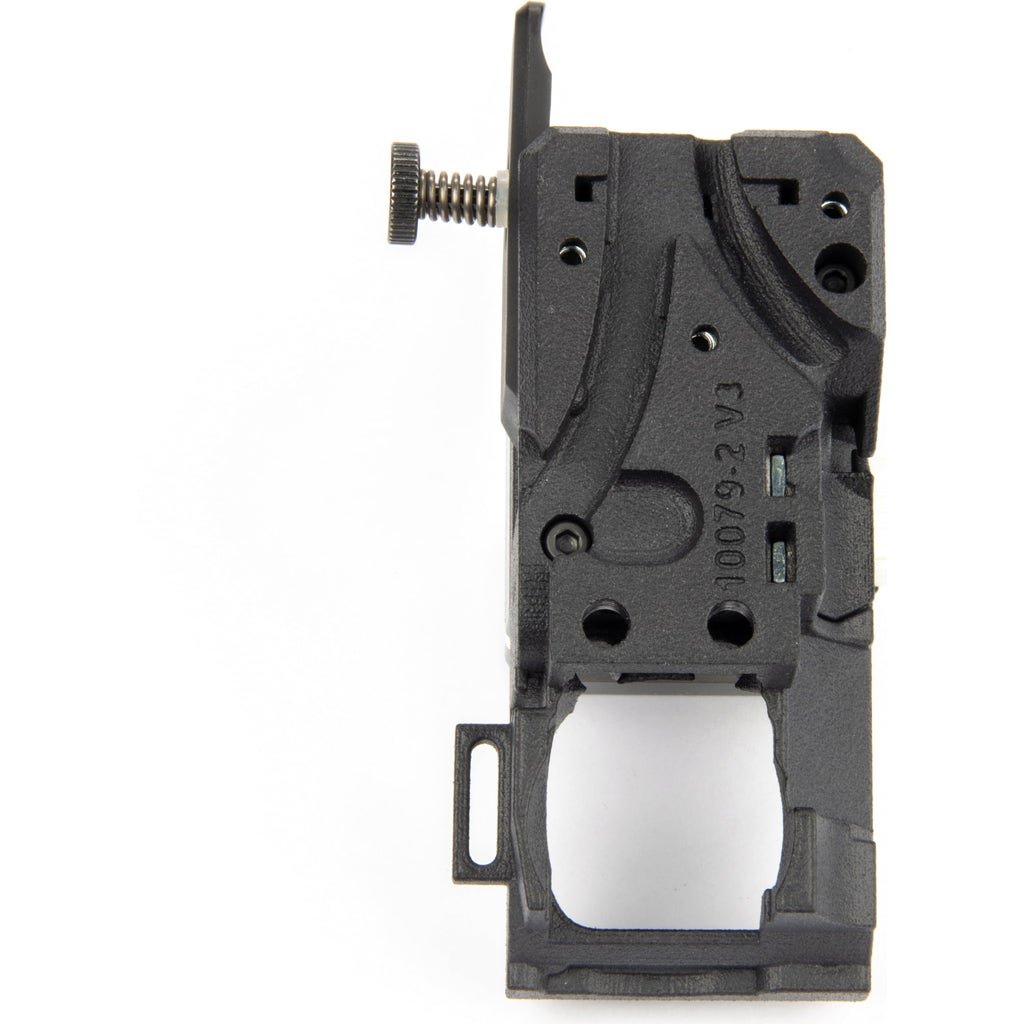

Bondtech DDX V3 Direct Drive eXtruder

This Direct Drive eXtruder from Bondtech is a powerful, highly reliable 1.75mm dual drive extruder for Creality 3D printers based on the very popular BMG. The housing parts are printed with PA12 (polyamide) for maximum strength and precision using SLS technology in industrial quality.

Easy to set up

To make it easier to set up, the kit is attached to the carriage with just 2 screws.
