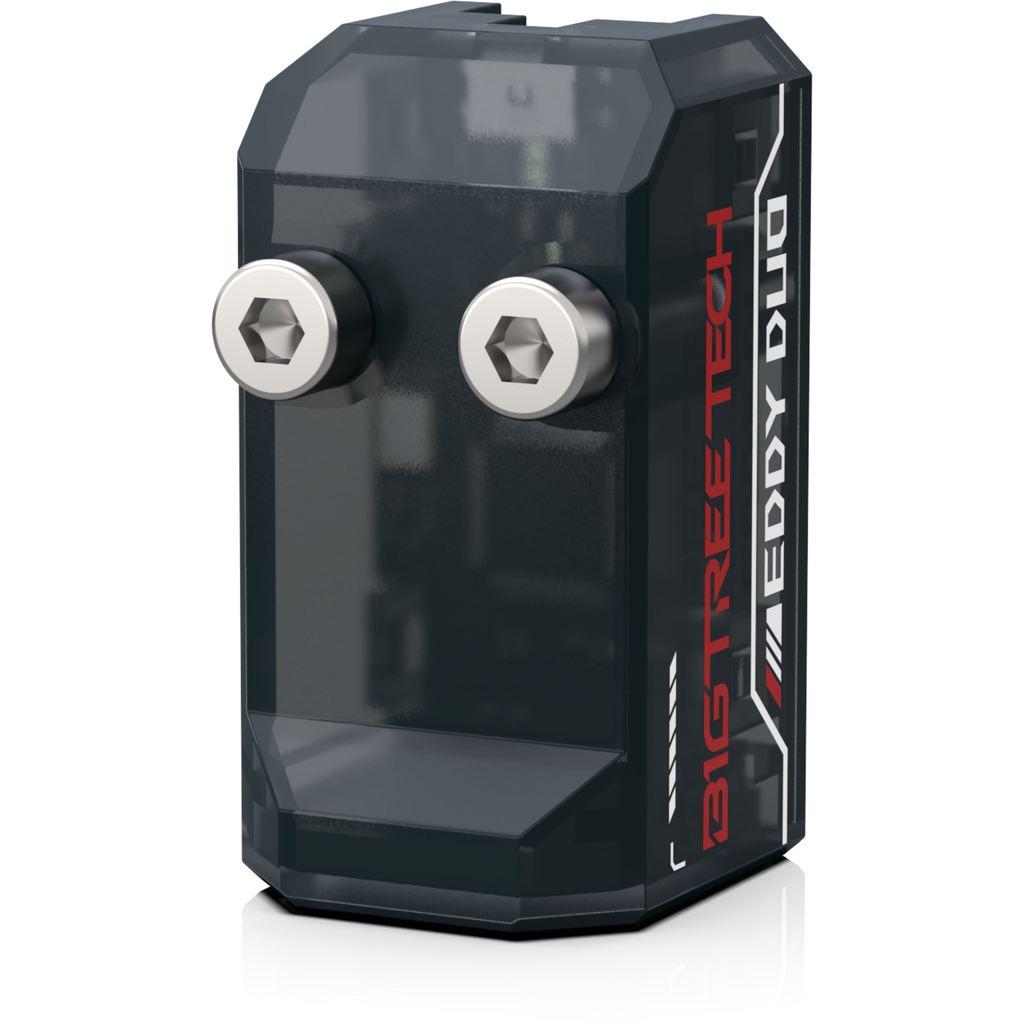

Eddy Duo
Automatic levelling sensor with flexible configuration for 3D printers
$23.08
Related:
Features & Advantages
- Communication via USB & CAN bus
- Levelling in 20 seconds
- Precision of 0.5 ¦Ìm
- Easy installation
Product information & technical details
- Item no.: BIQU-1060000710
- Manufacturer No.: 1060000710
- Manufacturer: BIQU
- Product type: Levelling Sensors
- Authorised representative serving as the EU responsible person.: XDH Tech, 2 Rue Coysevox Bureau 3, 69001, Lyon, France, xdh.tech@outlook.com
Description
The BIGTREETECH Eddy Duo is an automatic levelling sensor that enables precise levelling of the print bed in record time. Eddy Duo communicates seamlessly with the 3D printer mainboard via CAN bus or USB, and thus adapts flexibly to the requirements of your setup.
Lightning-fast levelling
Eddy Duo detects microscopic defects on the print bed and adjusts the height automatically. Thanks to sophisticated dual sensor technology, the print bed is levelled in just 20 seconds!
Highest precision
The sensor measures the height of the print bed with an accuracy of 0.5 ¦Ìm, which ensures a uniform first layer and optimal printing results.
Easy installation

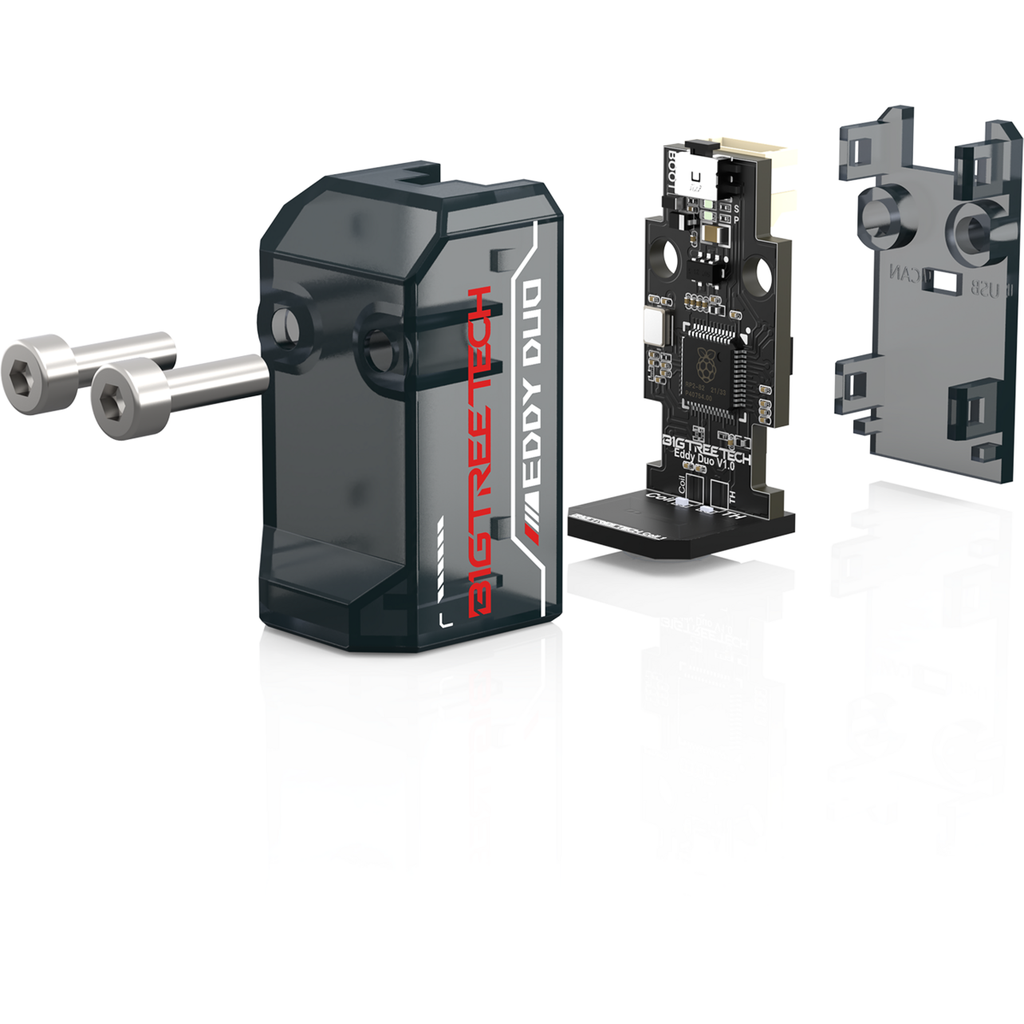

The Eddy Duo 's custom housing is designed to ensure that external metal interference does not affect its precision. A predefined recess for the sensor ensures easy, metrologically flawless installation.
Compatible with Voron StealthBurner
Eddy Duo can be easily attached to the TL-Q5MC/PL-08N and integrated into the Voron StealthBurner concept.

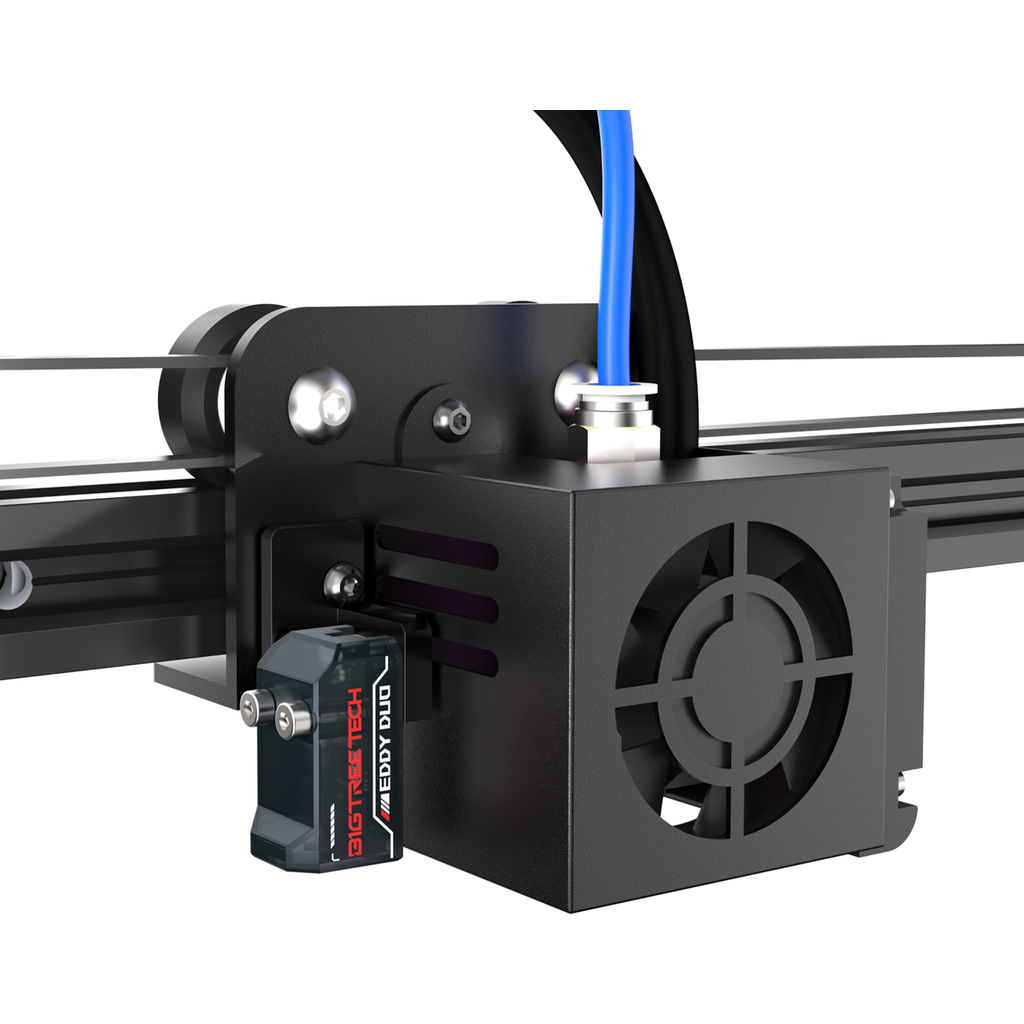

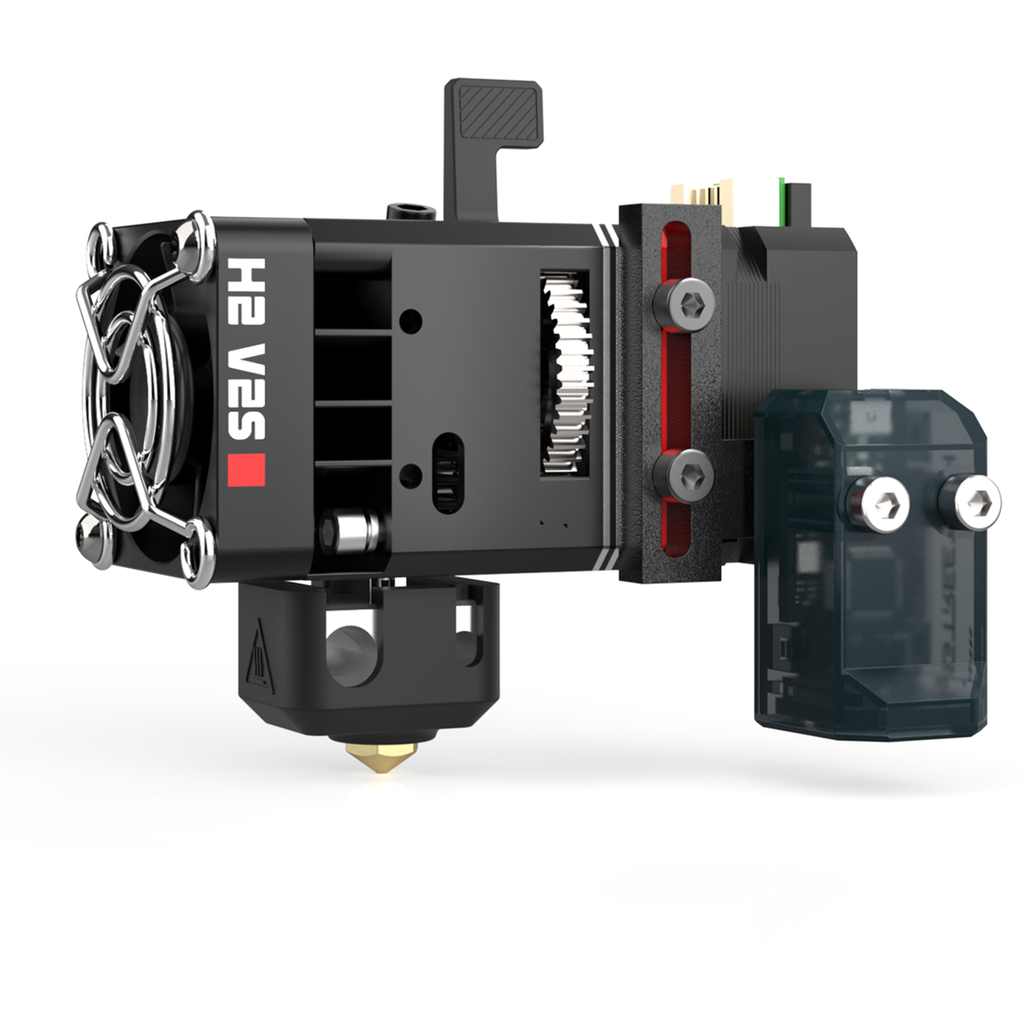

An error-proof installation eliminates possible errors and simplifies the setup process. Compatible with H2 series extruders, also compatible with Ender-3.
Tip: The bottom of the Eddy Duo features a centre point marker, making DIY adjustments quicker and easier than ever before.
Possible combinations for CAN connection:
- Eddy Duo + Manta M8P V2.0 + CB2
- EBB SB2209 CAN + Eddy Duo
Possible combinations for USB connection:
- Eddy Duo + Manta M8P V2.0 + CB2
Included in delivery:
- 1 x Eddy Duo

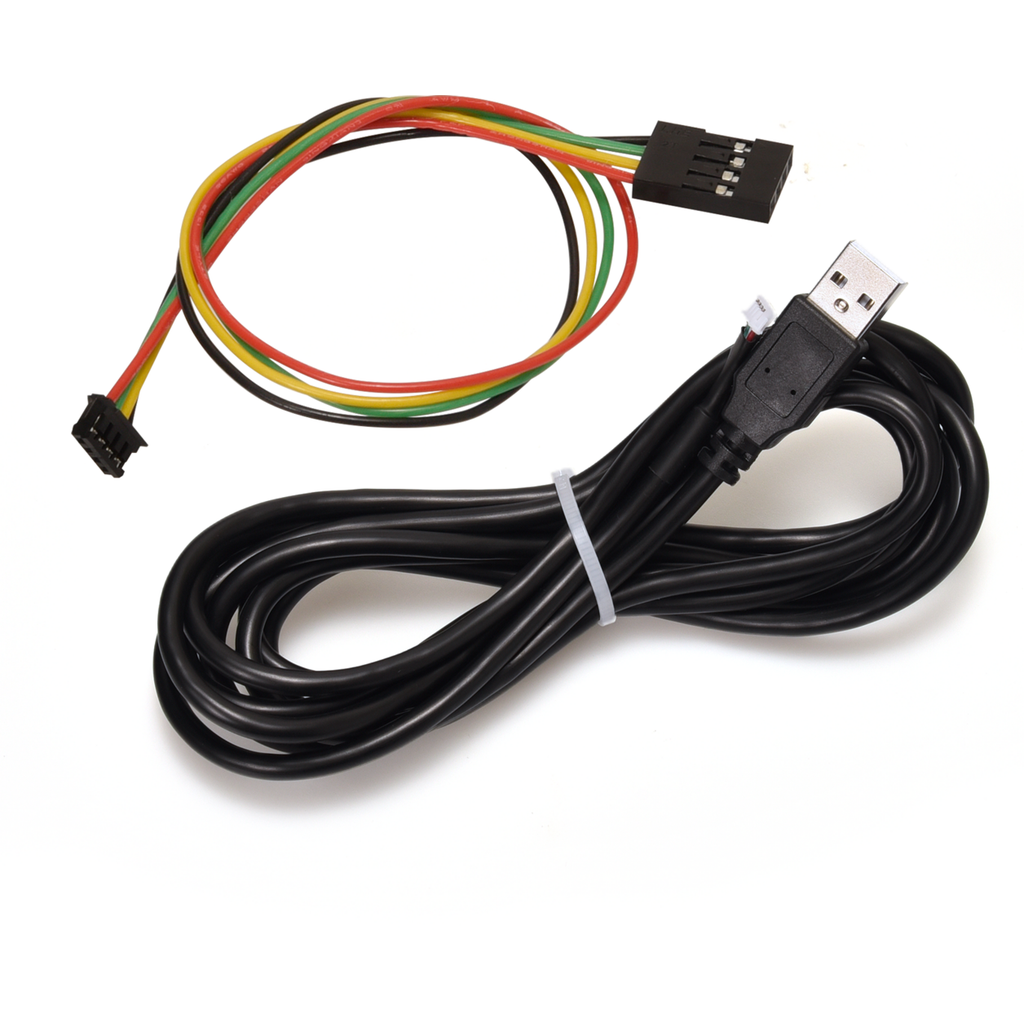

- 1 x USB cable, 2.5 m length
- 3 x Connector Housing (XH2.54-2pin)
- 6 x Crimp Pins (XH2.54 1P)
- 1 x connection cable
- 5 x cable ties
- 2 x M3x18 screws
- 2 x M3x25 screws (special for Voron)
- 3 x stickers
- 1 x BTT duck
Technical specifications:
| Eddy Coil V1.0 | Eddy V1.0 | Eddy Duo | |||
| MCU | - | RP2040 | |||
| Temperature compensation | - | Yes | |||
| Weight | 6 g | ||||
| Voltage | 5V | ||||
| Wwiring | 4-2.54mm DuPont female, one end with ZH1 5mm 4P connector | 4-pin, 1.5mm pitch | |||
| Operating temperature | ¡Ü 60 °C | ||||
|
Requirements |
|||||
| Firmware | Klipper | ||||
| Z-Homing device required | Yes | no | |||
| Circuit board | requires a connection to a Klipper-based motherboard (e.g. EBB36/42 CAN) with an I2C interface | requires a Klipper-based motherboard with USB interface | requires a Klipper-based motherboard with CAN/USB interface | ||
| Heated bed | requires a conductive metal print bed with a uniform magnetic field | ||||
Downloads
