NF-A6x25 12V Fan
Highly optimised, quiet 60 x 25 mm premium fan
$17.30
Features & Advantages
- Ultra-quiet!
- Premium quality
- Excellent long-term stability
Description
FLX

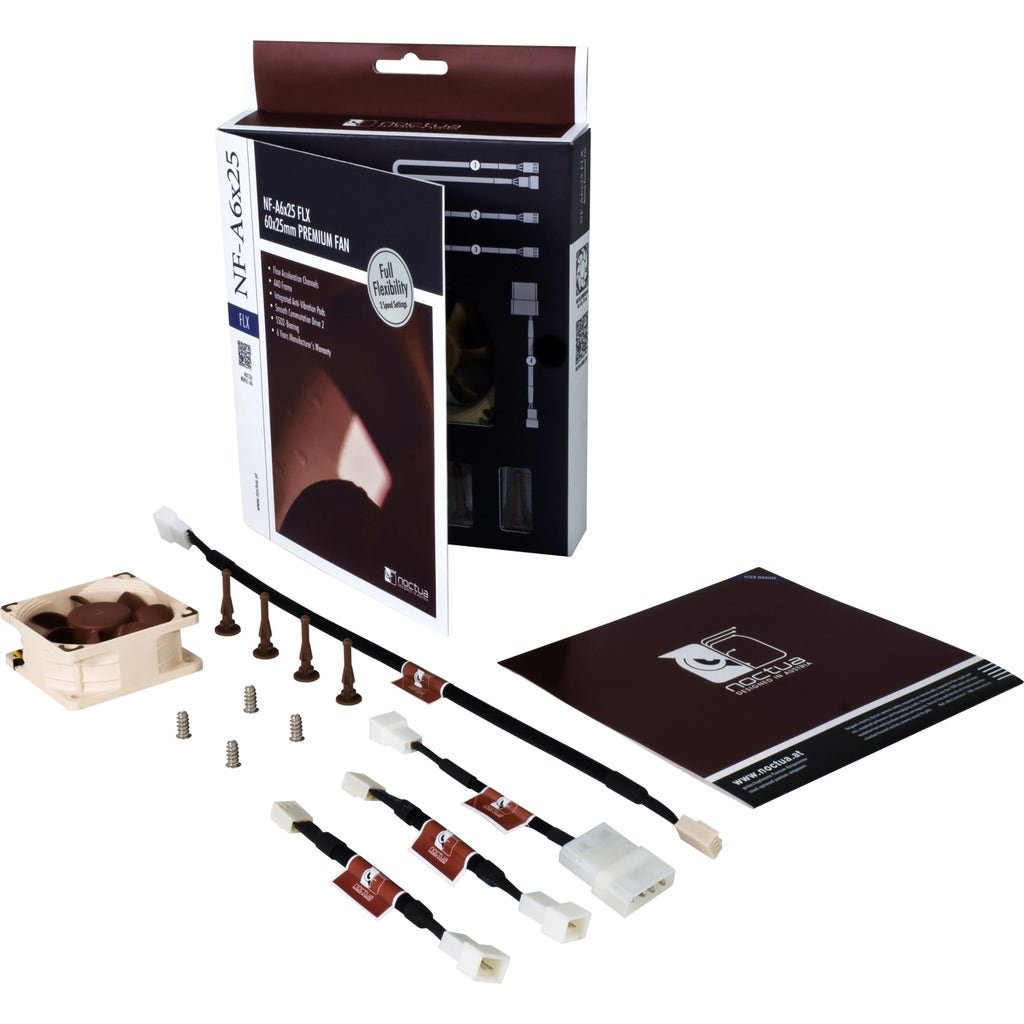

The NF-A6x25 FLX is a highly optimised, quiet fan in premium quality with a size of 60 x 25 mm. The smooth commutation drive technology and SSO2 reference bearings from Noctua guarantee excellent smoothness and long-term stability. Rounded off by modular cabling and low-noise adapter the NF-A6x25 is a first-class choice for the highest demands.
Specifications:
| Format | 60 x 60 x 25 mm |
| Hole spacing | 50 x 50 mm |
| Connection | 3-pin |
| Rotational. (+/- 10%) | 3000 RPM |
| Rotational. with LNA (+/- 10%) | 2400 RPM |
| Rotational. with ULNA (+/- 10%) | 1600 RPM |
| Noise | 19.3 dB (A) |
| Noise development with LNA | 14.5 dB (A) |
| Noise development with ULNA | 8.2 dB (A) |
| Max. Input | 1.44 W. |
| Max current | 0.12 A |
| Operating voltage | 12 V |
| MTTF | > 150,000 h |
PWM
The NF-A6x25 is a highly optimised, quiet fan in premium quality with a size of 60 x 25 mm. The PWM version is equipped with the NE-FD1-IC developed by Noctua for the fully automatic speed control via 4-pin fan strips and has a low-noise adapter that reduces the maximum speed for PWM control from 3000 to 2100 U / min reduced. Its smooth-running, the SSO2 bearing and the proven premium quality from Noctua make it a first-class choice for the highest demands.
Specifications:
| Format | 60 x 60 x 25 mm |
| Hole spacing | 50 x 50 mm |
| Connection | 4-pin |
| Rotational. (+/- 10%) | 3000 RPM |
| Rotational. with LNA (+/- 10%) | 2300 RPM |
| Min. Revolution speed (PWM, +/- 20%) | 550 RPM |
| Noise | 19.3 dB (A) |
| Noise development with LNA | 13.7 dB (A) |
| Max. Input | 0.96 W. |
| Max current | 0.08 A. |
| Operating voltage | 12 V |
| MTTF | > 150,000 h |
Downloads

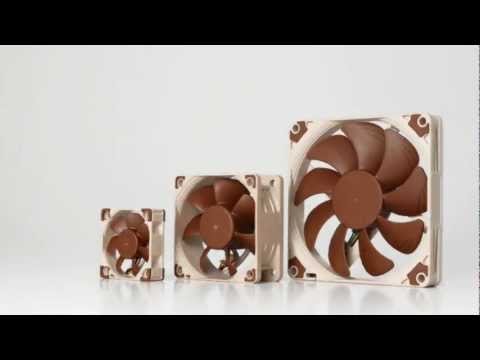

Product video
