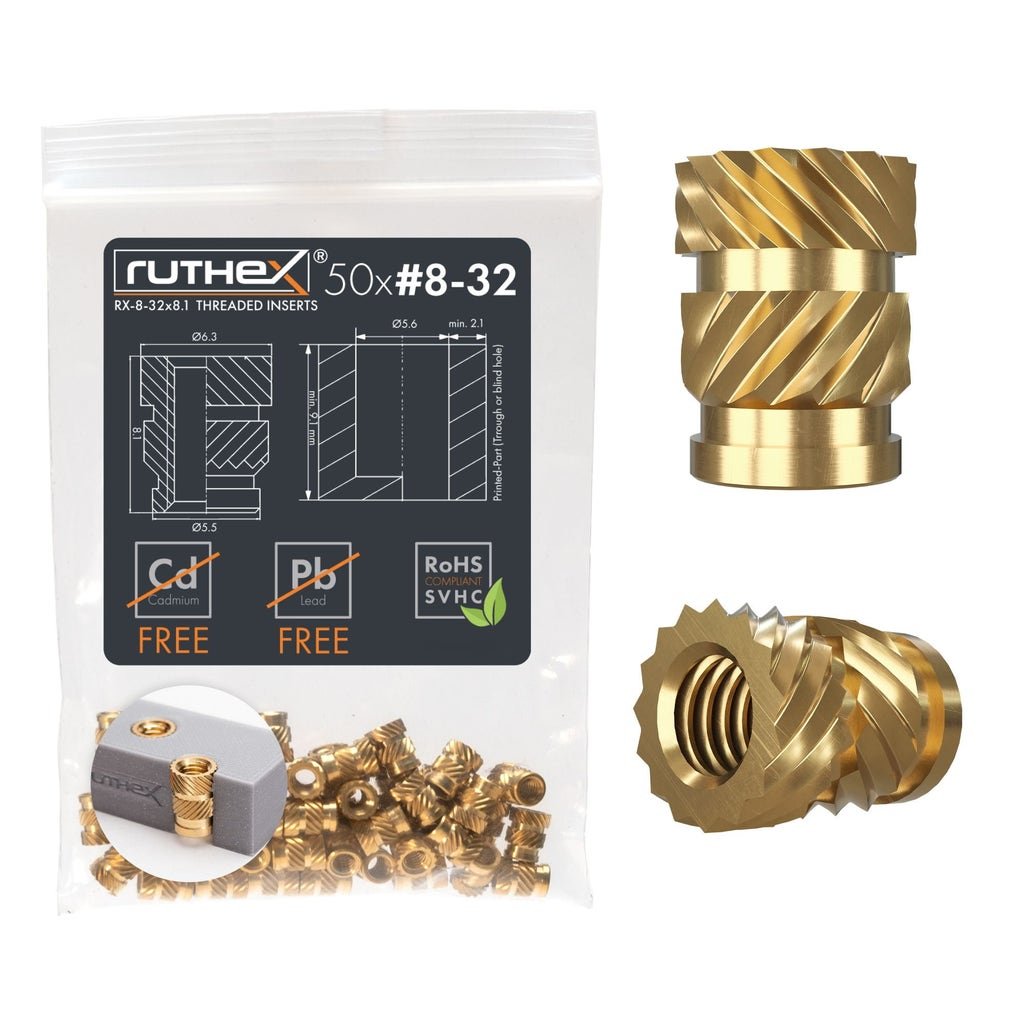

Threaded Insert #8-32 UNC (50 pieces), #8-32x8,1
High-quality threaded inserts made of brass
$7.33
Features & Advantages
- Made of brass
- For thermoplastics
- Opposite spiral geometry
- High pulling power & firm hold
- Reusable
Description
These ruthex thread inserts are made of high-quality brass and are first-class processed thanks to low production speeds. They have opposing spiral knurled nuts that guarantee an extra firm hold. When installed, the threaded inserts therefore offer incredible tensile force as well as high tightening and loosening torque.
Using ruthex threaded inserts is easier than ever: insert using heat or ultrasound and enjoy stable threads for 3D applications! The high-quality brass ensures high corrosion resistance and thermal conductivity.
Tip: The high-quality threaded inserts can be used several times without the risk of them tearing out. After they are no longer needed, they can be carefully removed.
Advantages at a glance:
- Suitable for all thermoplastics
- Opposing spiral knurled nuts
- Strong pulling force
- Sharp edges
- Cadmium and lead-free
The set consists of 50 pieces of press-in nuts with #8-32 internal thread and a length of 8.1 mm.

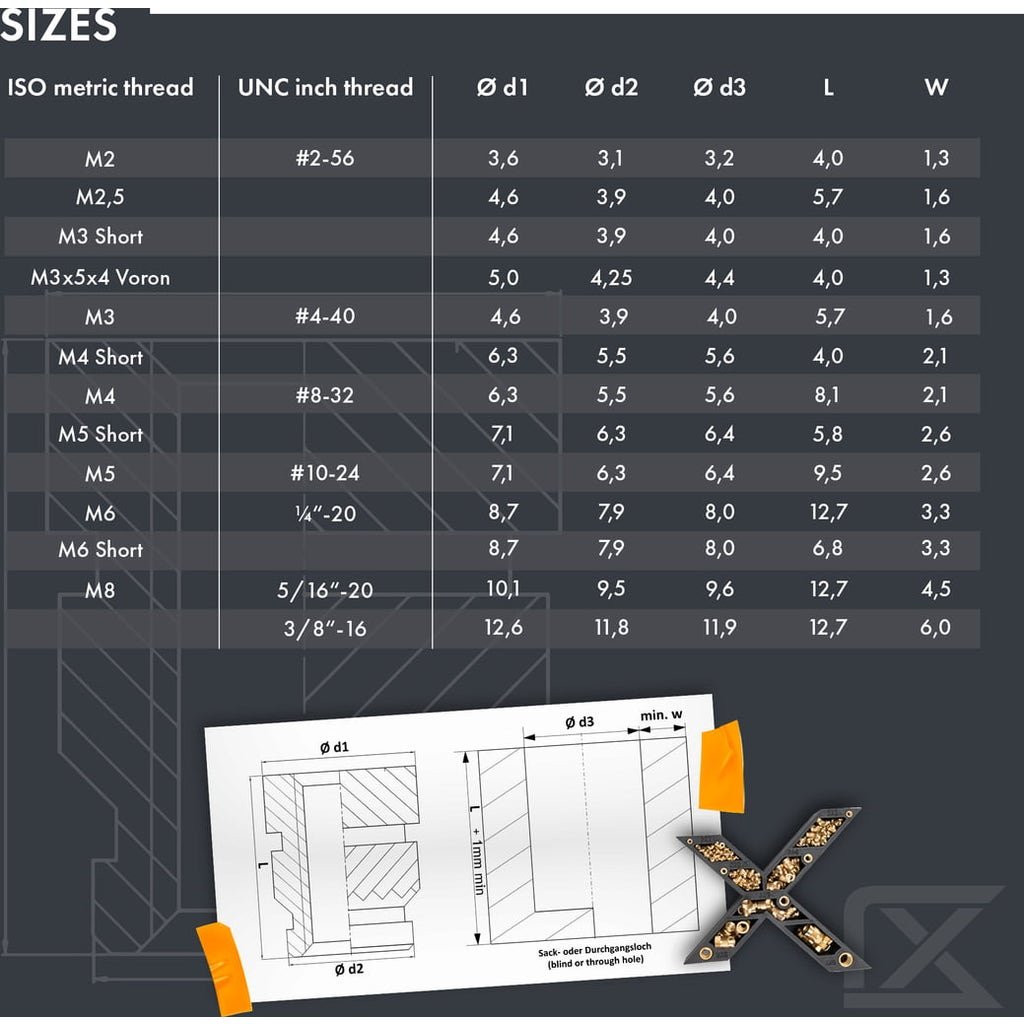

Technical specifications:
| UNC thread size | ? D1 | ? D2 | ? D3 | L | W (min.) |
| #8-32 | 6.3 | 5.5 | 5.6 | 8.1 | 2.1 |
Downloads
Product video
Customer Reviews
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
1-3 of 3 reviews
