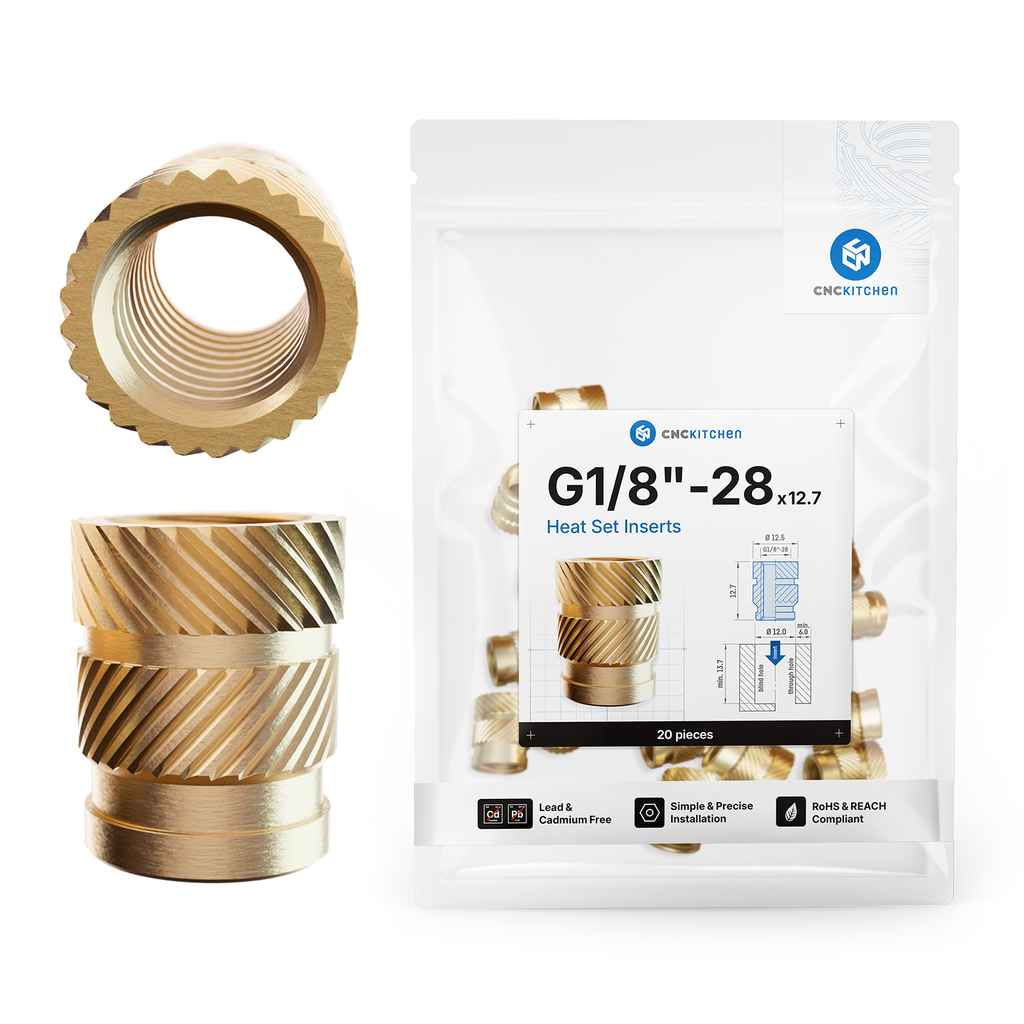

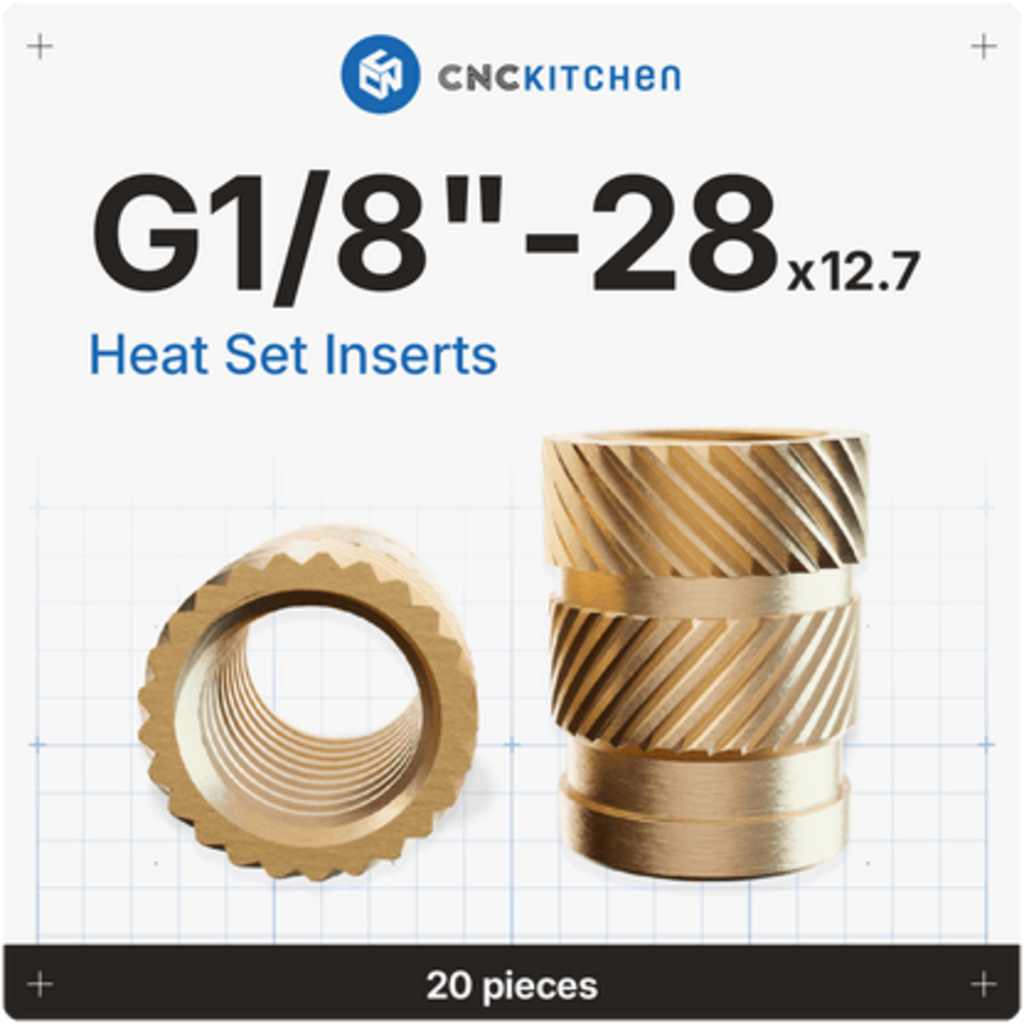

Threaded Insert G1/8''-28 UNC, G1/8???-28 x 12.7 (20 pcs)
Precision-milled inserts made from high-quality brass
$13.15
Related:
Features & Advantages
- Made of brass
- For thermoplastics
- Cadmium & lead free
- Incl. 20 pieces
Product information & technical details
- Item no.: CNC-4262391011324
- Manufacturer No.: 4262391011324
- Manufacturer: CNC Kitchen
- Product type: Hardware
Description
The CNC-milled threaded inserts made of high-quality brass are a practical accessory that transforms your 3D-printed plastic parts (made of PLA, PETG, ABS, etc.) into practical and versatile functional components.
The cadmium- and lead-free thread inserts are inserted or melted in with a soldering iron. They increase the strength of the resulting connection by bonding the thread insert to the material and preventing it from moving.
Tip: For maximum strength connections, you should install the brass inserts at a temperature that is 10-20 °C higher than the printing temperature. CNC Kitchen also recommends only melting 90% of the threaded inserts with a soldering iron - the rest can be fitted into the component using tools.
Advantages at a glance:
- Suitable for all thermoplastics,
- Also suitable for SLA resin/resin (note: the inserts are glued here!),
- Cadmium and lead-free,
- REACH and RoHS compliant,
- Durable and robust,
- Creates strong connections.

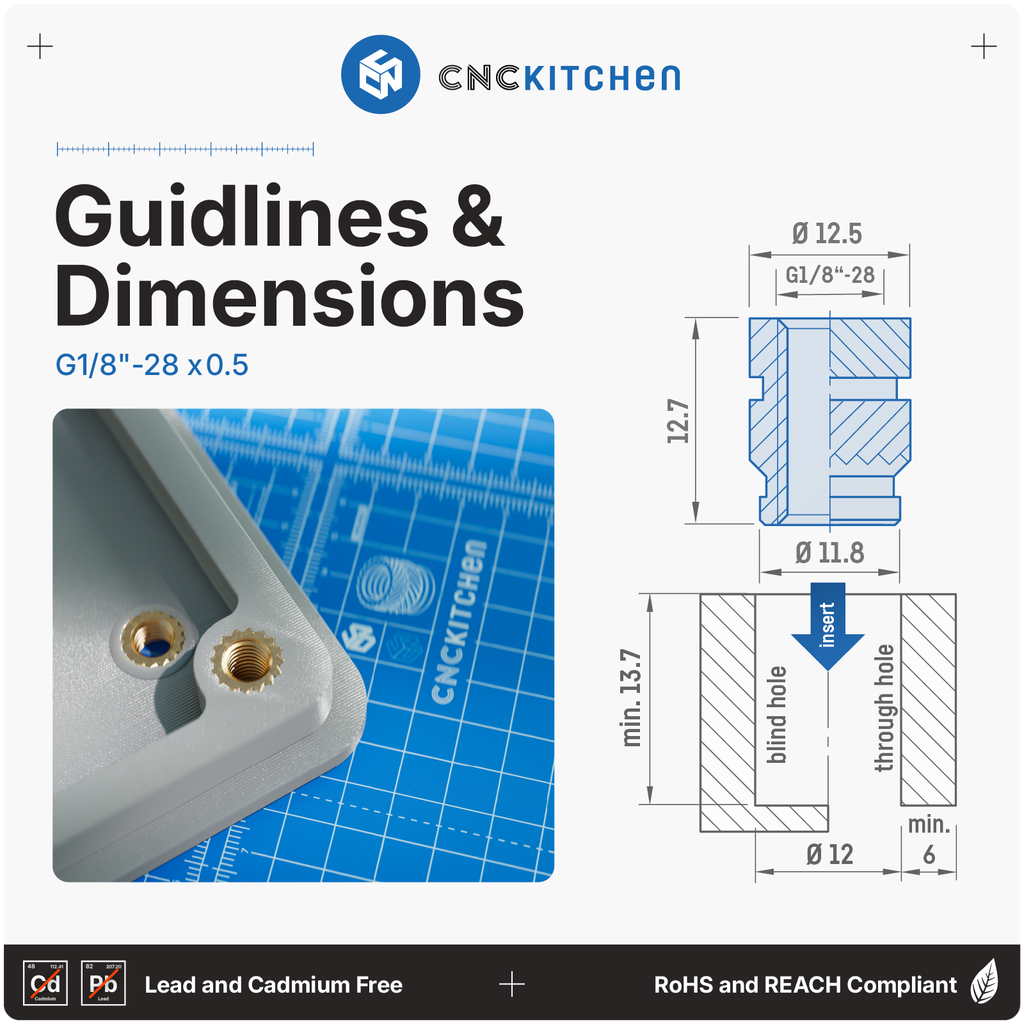

The set contains 20 pieces of G1/8''-28 UNC (G1/8"-28 x 12.7) threaded inserts.

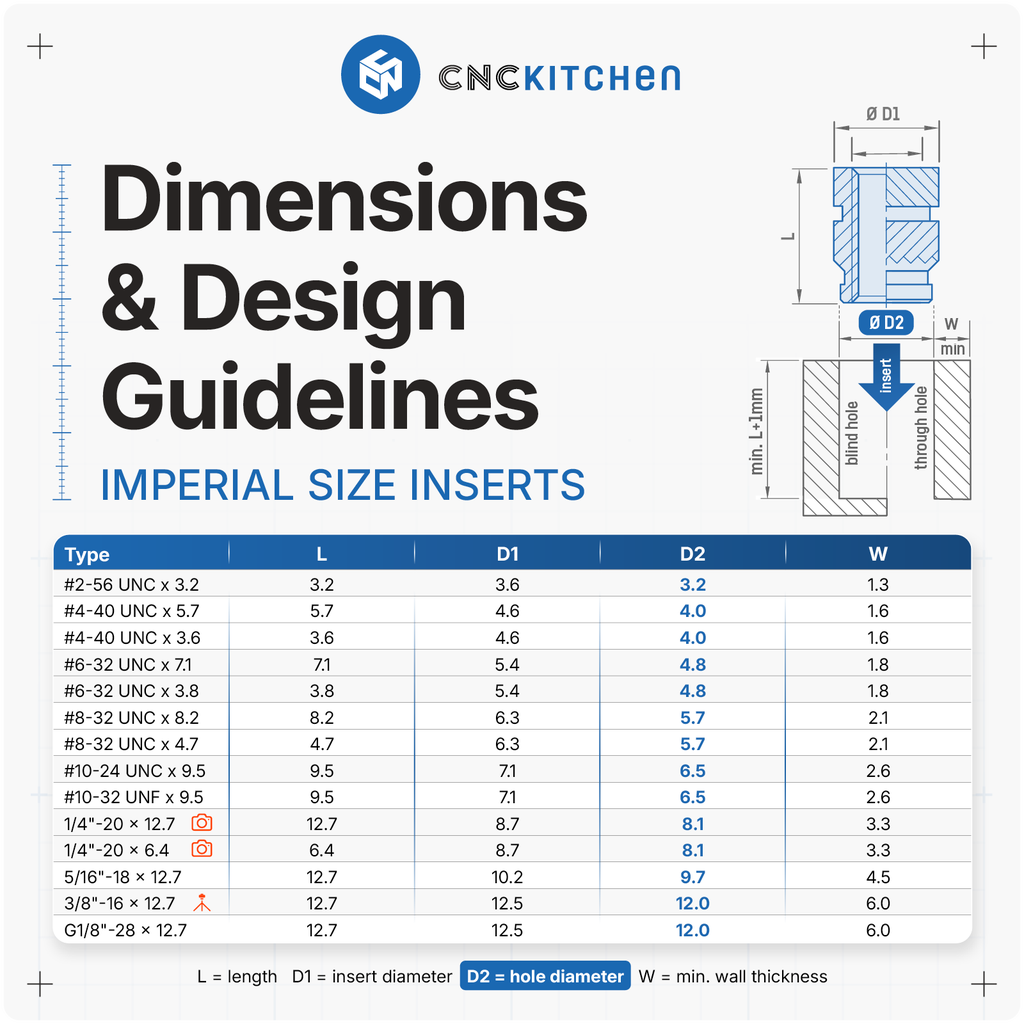

CNC-Kitchen threaded inserts in comparison:
| UNC thread size | Length type L | Insert diameter ? D1 | Centre point ? D2 | Hole diameter ? D3 | Wall thickness min. W |
| #2-56 x 3.2 | 3,2 | 3,6 | 3,1 | 3,2 | 1,3 |
| #4-40 x 5.7 | 5,7 | 4,6 | 3,9 | 4,0 | 1,6 |
| #4-40 x 3.6 | 3,6 | 4,6 | 3,9 | 4,0 | 1,6 |
| #6-32 x 7.1 | 7,1 | 5,4 | 4,7 | 4,8 | 1,8 |
| #6-32 x 3.8 | 3,8 | 5,4 | 4,7 | 4,8 | 1,8 |
| #8-32 x 8.2 | 8,2 | 6,3 | 5,5 | 5,7 | 2,1 |
| #8-32 x 4.7 | 4,7 | 6,3 | 5,5 | 5,7 | 2,1 |
| #10-24 x 9.5 | 9,5 | 7,1 | 6,3 | 6,5 | 2,6 |
| #10-32 x 9.5 | 9,5 | 7,1 | 6,3 | 6,5 | 2,6 |
| 1/4"-20 x 12.7 | 12,7 | 8,7 | 7,9 | 8,1 | 3,3 |
| 1/4"-20 x 6.4 | 6,4 | 8,7 | 7,9 | 8,1 | 3,3 |
| 5/16"-18 x 12.7 | 12,7 | 10,2 | 9,5 | 9,7 | 4,5 |
| 3/8"-16 x 12.7 | 12,7 | 12,5 | 11,8 | 12 | 6,0 |
| G1/8"-28 x 12.7 | 12,7 | 12,5 | 11,8 | 12 | 6,0 |
