-80%

in stock

In stock

Revopoint

Inspire

Versatile 3D scanner with 0.2mm accuracy for medium-sized objects

9 reviews

Original price was: $307.20.Current price is: $61.44.

More information regarding shipping & delivery

Features & Advantages

Detection range of 230 x 140 mm
Accuracy of 0.2mm
Light weight
Smart features

Item no. RP-6975577880192

Category: 3D Scanners

Product information & technical details

Item no.: RP-6975577880192
Manufacturer No.: 6975577880192
Manufacturer: Revopoint
Product type: 3D Scanners
Supported operating systems: Windows (7+), Mac OS X (10.7+)
Interfaces: WIFI - WLAN, USB-C Connection
Supported Formats (Slicer): STL, OBJ, PLY

Description

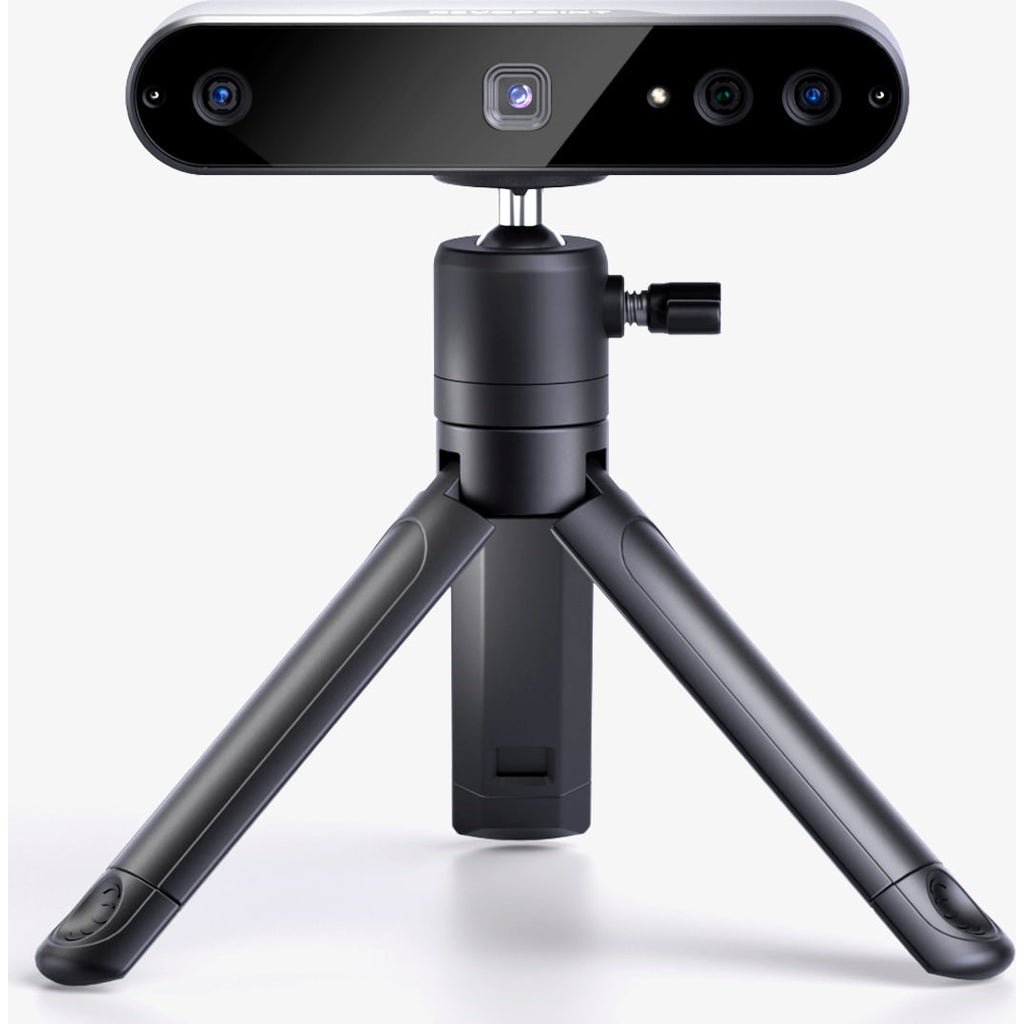

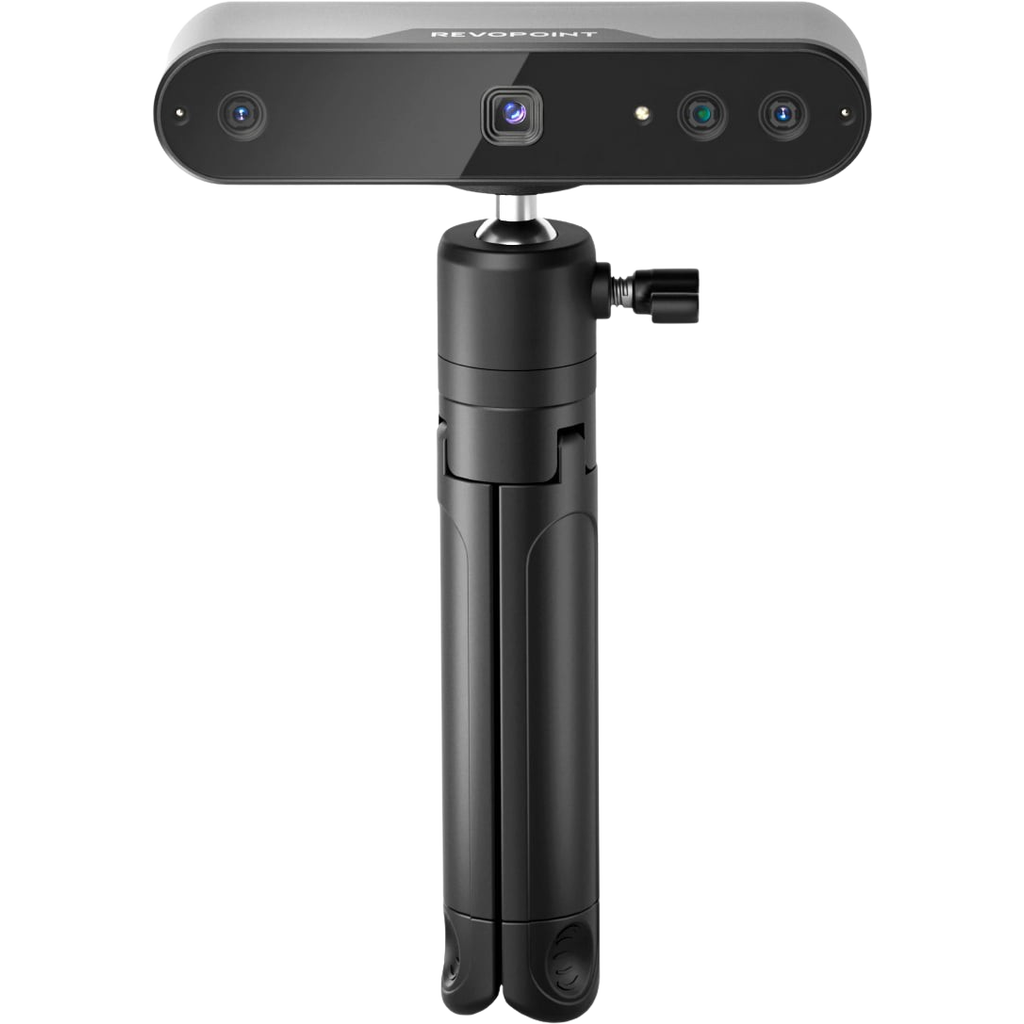

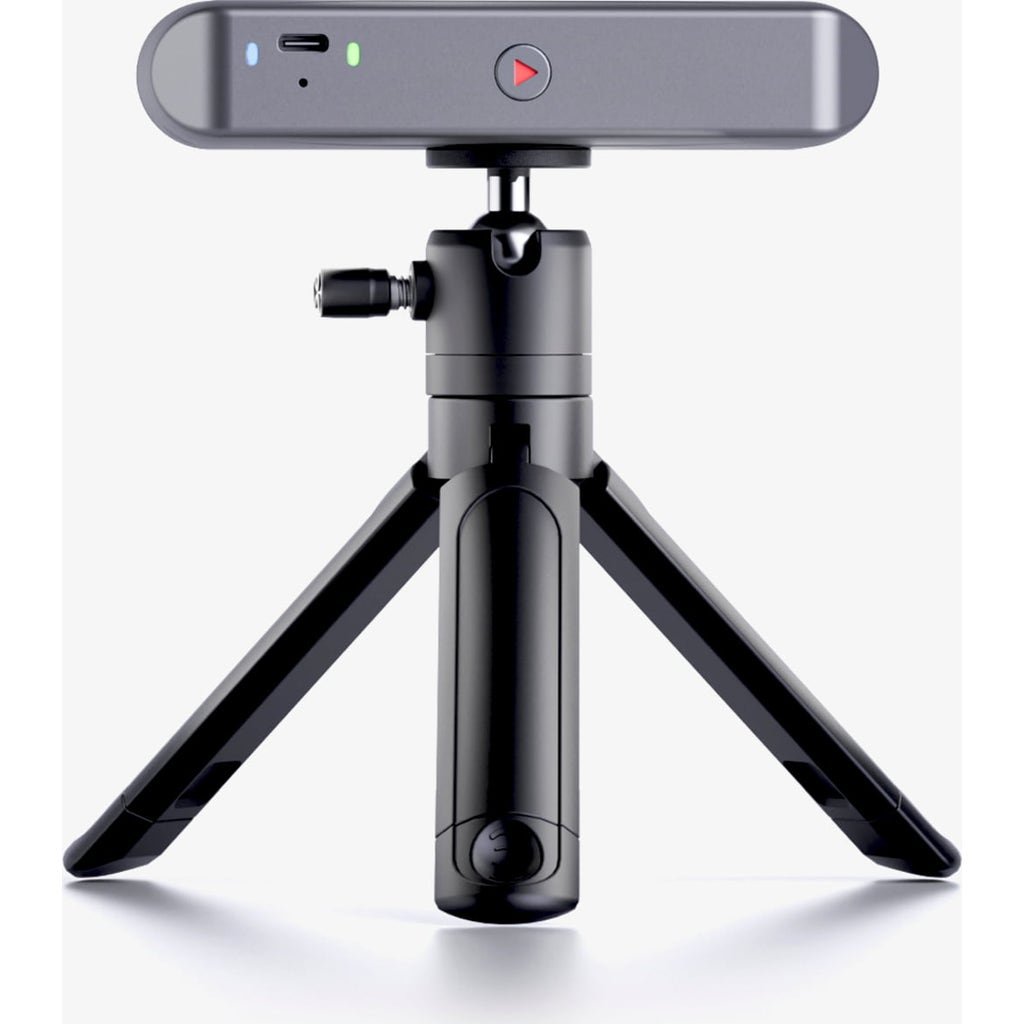

The Revopoint INSPIRE is an easy-to-use and cost-effective 3D scanner with an accuracy of 0.2mm. The compact scanner is packed with advanced 3D scanning technology to provide versatile capture options for 3D printing enthusiasts as well as manufacturers and designers.

High accuracy and speed

The 3D scanner works with an accuracy of up to 0.2 mm and at a speed of 14-18 frames per second in order to quickly capture precise details of the object to be captured.

Low weight for more flexibility

With a low weight of just 140 g, the compact device can be taken anywhere. You can either hold it in your hand while on the move or place it on a surface with a tripod.

Large detection range for a variety of applications

With a detection range of 230 x 140 mm, you can digitally capture a variety of objects with ease.

Easy scanning

Thanks to an included Magic Mat, you can scan objects without markings, and double infrared LEDs also provide better marking tracking.

Smart features for intelligent scanning

INSPIRE features a 9-axis IMU (Inertial Measurements Unit) for seamless tracking and frame stitching. This means that the scanner movements are measured continuously in order to minimise scanning errors caused by movements that are too fast or vibrations.

In the Download Center, you will find Revo Scan, the scanning software for 3D scanners from Revopoint.

Included:

1 x INSPIRE 3D Scanner
1 x USB Type-C to A Cable
1 x Tripod
1 x Type-C Adapter
1 x Adhesive Strip
1 x Marker Set
1 x bust (sample)
1 x Magic Mat
1 x Mini Turntable
1 x Rotary Table Attachment
1 x Calibration Board

Technical specifications:

Scanner type	Turntable & Mobile
For object size	Medium-sized
Technology	Structured infrared light with two cameras
Precision (single image)	Up to 0.2mm
Range	250~500mm
Scan speed	14-18 fps
Depth camera resolution	Up to 1MP
RGB camera resolution	Up to 1MP
3D light source	Class 1 infrared light
Supported functions	Colour scan, outdoor scan
Special features	White LED flash lights Infrared fill lights
CPU	2 cores, 1.6GHz
Minimal requirements for the system	Intel Core i5, 8GB RAM
Compatible operating systems	Windows 10/11 (64-bit), Android, iOS, macOS
Output file formats	PLY, OBJ, STL
Interfaces	WiFi 6, Bluetooth 4.1, USB Type-C
Performance	DC 5V, 1A
Device weight	140g
Device size	132x45x27mm
