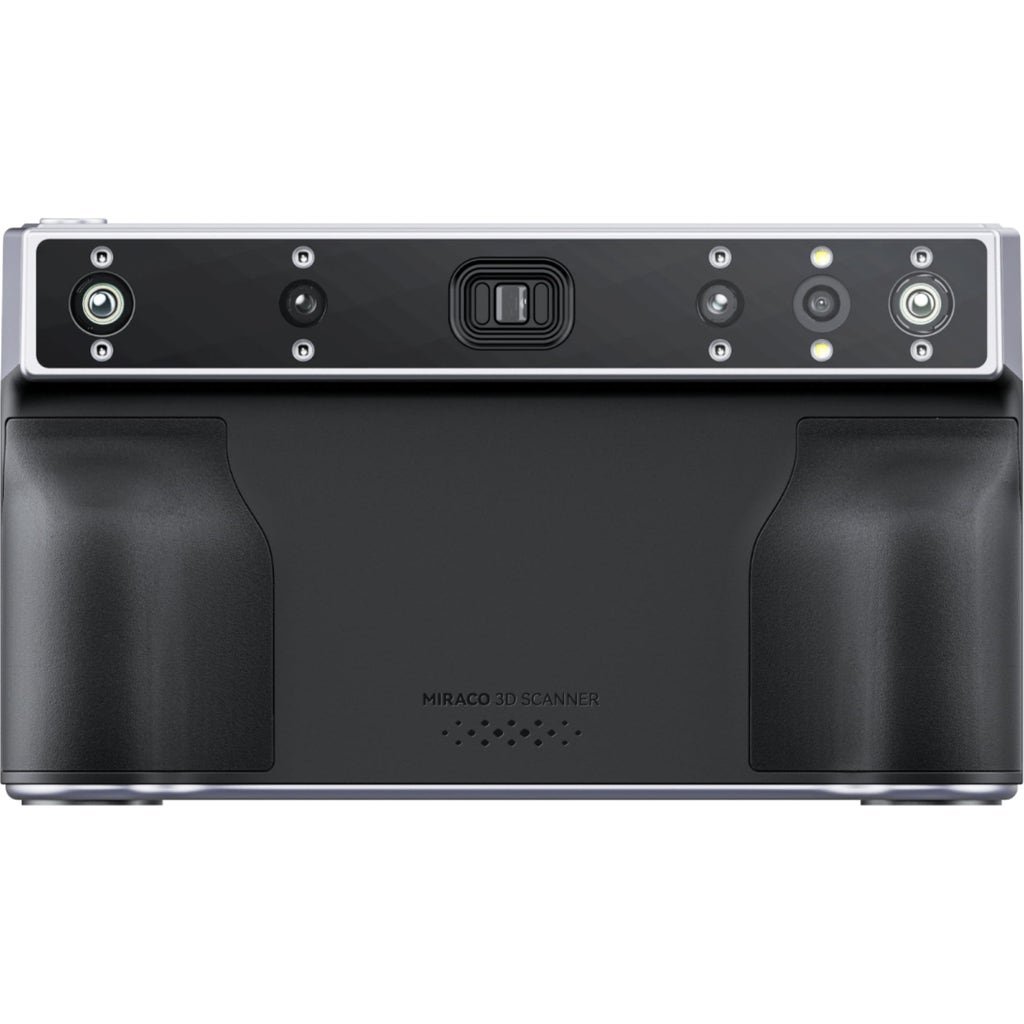

Miraco Plus

The Revopoint MIRACO Plus is a high-precision, all-in-one, standalone 3D scanner with photogrammetric measurement capabilities that can digitally capture both small and large objects with impressive accuracy and detail. With its compact design and low weight of just 750 g, the MIRACO Plus is easy to transport and can be used on the go.

MIRACO vs. MIRACO Pro vs. MIRACO Plus:

The MIRACO 3D scanners are equipped with a 2.4GHz 8-core processor and a 256 GB hard drive. While MIRACO already gets by perfectly with 16 GB RAM, MIRACO Pro and MIRACO Plus have 32 GB RAM. MIRACO Pro and MIRACO Plus are better suited for scanning large objects because these standalone scanners can capture a higher number of images. All three 3D scanners have close calibration boards, MIRACO Pro and Plus also contain remote calibration boards. MIRACO Plus is also equipped with photogrammetric measurement functions for creating high-precision, large-format 3D models.

• MIRACO: captures up to 5000 images for non-colour scans and up to 4000 images for colour scans,
• MIRACO Pro/Plus: captures up to 10,000 images for non-colour scans and up to 8,000 images for colour scans.

Features of the MIRACO Plus at a glance:

• Weight of only 750 g,
• Up to 0.02 mm precision and 0.04 mm accuracy (single-frame),
• Scanning speed of up to 20 fps,
• Photogrammetric Metrology Kit (PMK),
• Colour capture with a 48-megapixel RGB camera,
• Two capture modes: Single-Shot and Continuous Mode,
• 6 inch AMOLED screen with 180¡ã angle,
• 9-axis IMU,
• Up to 2 hours of scanning, 50-watt quick charge function.

Photogrammetric Metrology Kit (PMK)

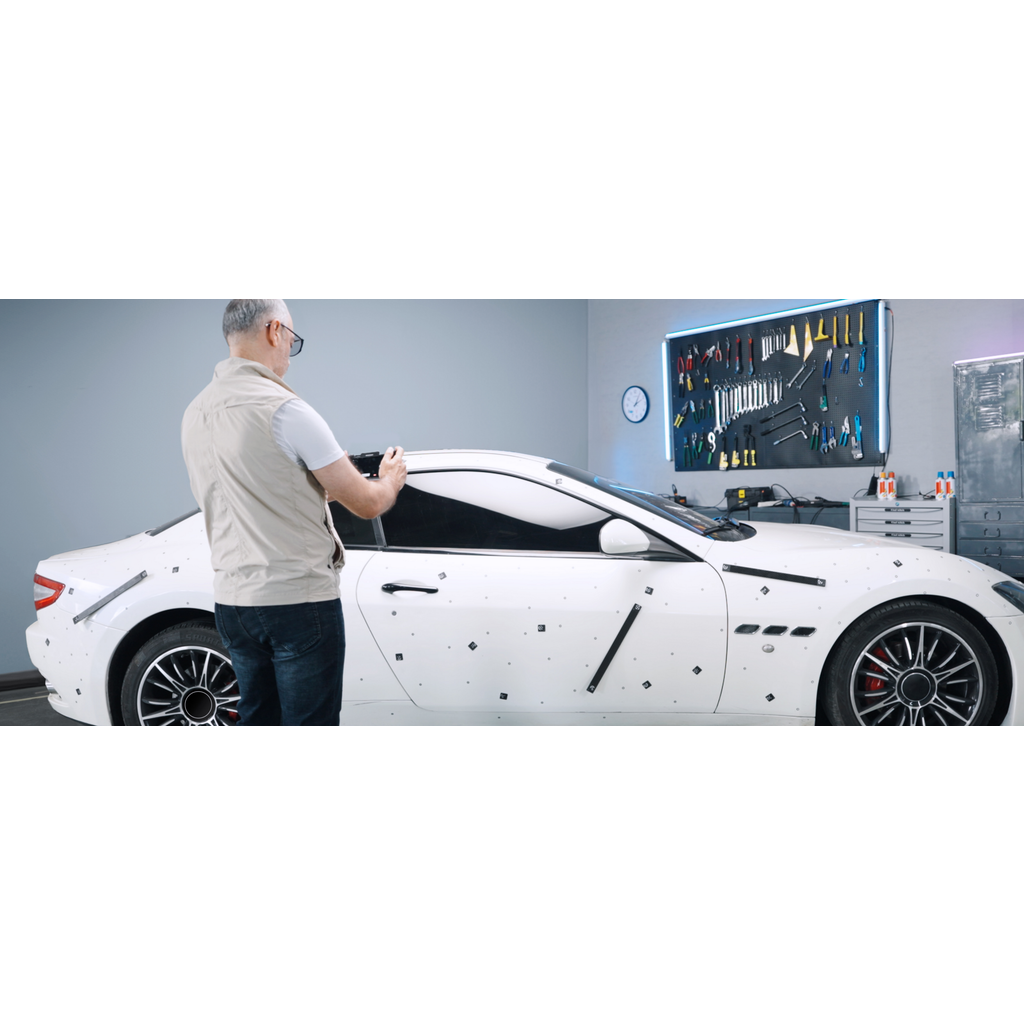

A fascinating extension that MIRACO Plus brings is the Photogrammetric Metrology Kit, which gives the scanner photogrammetric measurement capabilities for creating high-precision, large-format 3D models. This means you can now measure large objects such as cars, ship or aircraft parts and machines in metrological quality.

MIRACO Plus is equipped with a high-precision calibration board with an accuracy of 20 micrometres. The combination of the precise point clouds and the Photogrammetric Metrology Kit guarantees the scanner a photogrammetric length accuracy of 0.02 mm + 0.05 mm x L (m), which allows ultra-fine details on large objects to be captured with up to 20% accuracy. With the excellent single-frame accuracy of up to 0.04 mm, the 3D scanner is ideal for applications where precision and detail are important.

Optical zoom for more detail

Revopoint MIRACO Plus features a 1.5x and 2x optical zoom to capture all the surface details of your scanning object. The zoom focuses the infrared light, helping to remove noise and increase detail.

Two recording modes

Single-Shot Mode: Captures objects even in difficult-to-handle environments.

Continuous Mode: Ideal for fast scans. Achieves scanning speeds of up to 20 fps in near and far mode.

? Tip: While the close-up mode is perfect for capturing intricate details, the long-distance mode allows you to quickly capture even entire objects.

48 megapixel RGB camera

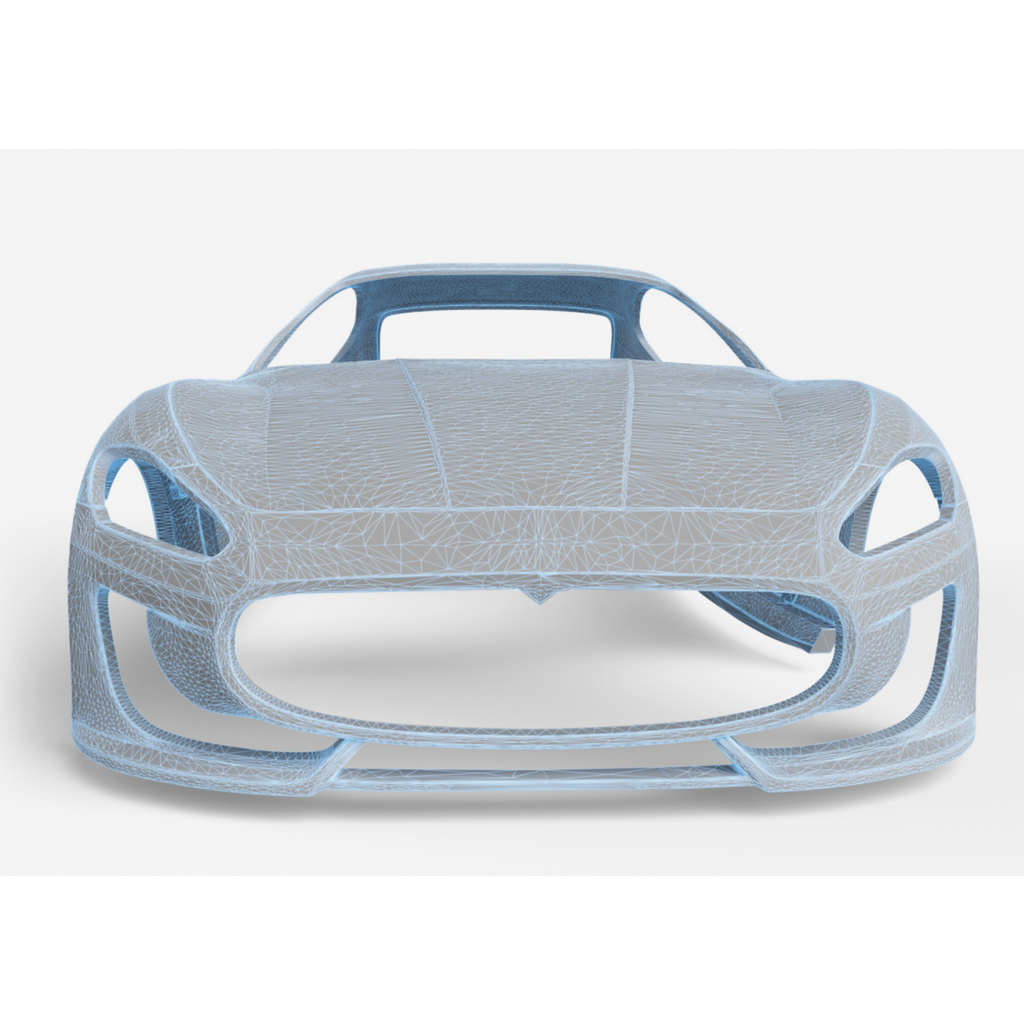

With the MIRACO Plus ' 48 megapixel RGB camera, you can create textured 3D models in colour and impressive structures in high resolution.

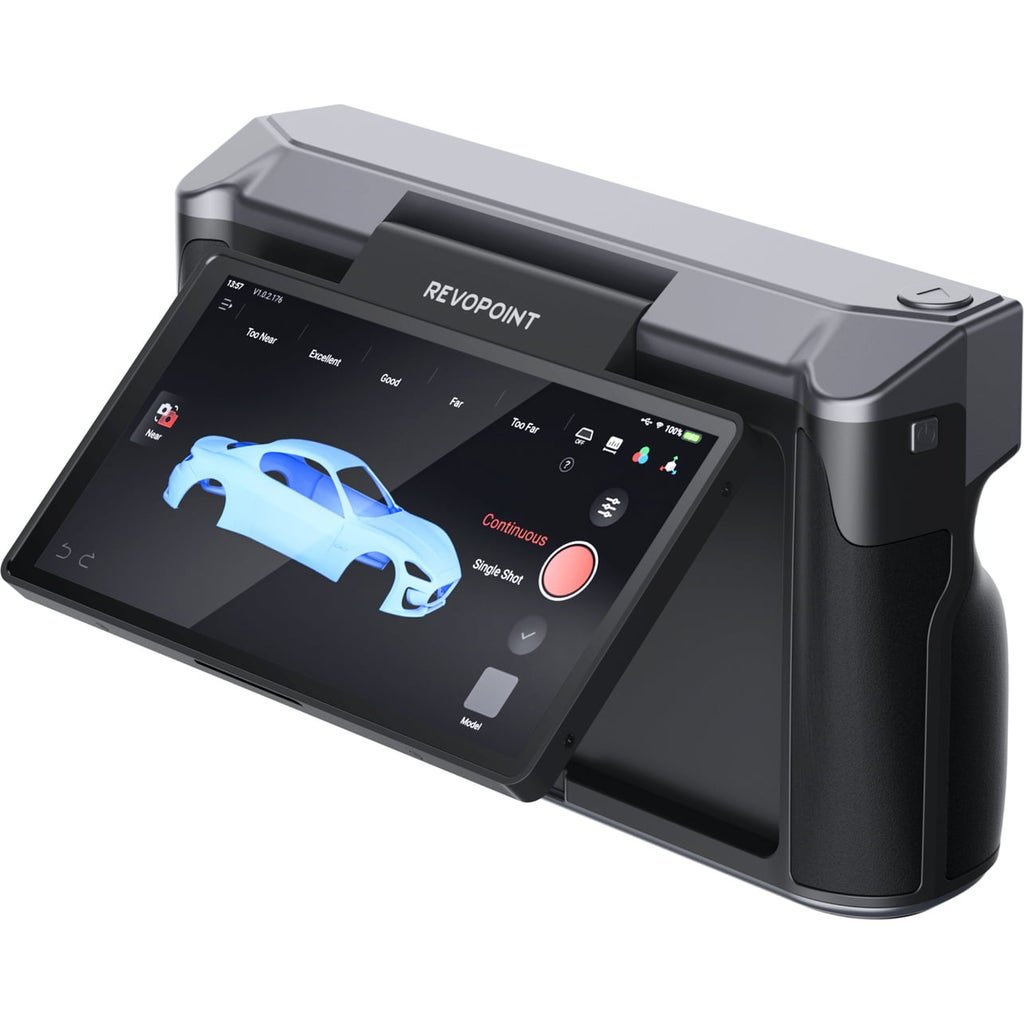

6-inch 2K AMOLED touchscreen

The MIRACO Plus is equipped with a 6-inch AMOLED touchscreen with 2K backlight. The screen can be tilted 180¡ã for maximum flexibility and can be folded up for selfie face scans.

2 hours of operation and 50 watt fast charging

Thanks to a 5,000 mAh battery, you can scan for up to two hours without interruption with MIRACO Plus. The 50 watt quick charge function charges the scanner to 80% in just 35 minutes.

Included in delivery:

• 1 x MIRACO Plus 3D scanner
• ScaleBar
• Coded Targets (magnetic)
• Coded Targets (adhesive)
• 1 x Tripod
• Mini turntable, turntable topper & pattern bust
• Marker set
• 1 x USB Type-C to HDMI adapter
• 4 x Far Mode Calibration Board
• 1 x large sheet for the calibration board
• 1 x Near Mode Calibration Board
• 2 x Magic Mat
• 1 x 65W Dual USB Type-C Port Power Adapter
• 1 x USB Type-C to Type-A adapter
• 1 x Scanner storage bag
• 1 x wrist strap

Technical specifications:
